Ask Ethan: Does Our Universe Have More Than 3 Spatial Dimensions?

Three of our dimensions are spatial and one is temporal, but could there be more?

From any point in space, you are free to move in any direction you choose. No matter how you orient yourself, you can travel forwards-or-backwards, up-and-down, or side-to-side: you have three independent dimensions that you can navigate. There is a fourth dimension: time; we move through that just as inevitably as we move through space, and via the rules of Einstein’s relativity, our motion through space and time are inextricable from one another. But could additional motions be possible? Could there be additional spatial dimensions beyond the three that we know? That’s what Paul Veldman wants to know, writing in to ask:

“My question is has the 4th [spatial] dimension been proven to exist or is it just theoretical? If it does exist how was it proven to exist? If it’s theoretical why do we think it might exist?”

This has been a question that physicists have entertained for about than a century, and that many mathematicians and philosophers have wondered about for significantly longer. There are numerous compelling reasons to consider the possibility.

Perhaps the best starting point is to consider what life would be like if you, a three-dimensional being, were to encounter someone who lived in a two-dimensional Universe, as though they were confined to living on the surface of a sheet of paper. They would be able to move forwards-or-backwards as well as side-to-side, but they would have no concept of up-and-down. To them, it would be like asking “what’s north of the north pole?” here on Earth; it’s a question that just doesn’t make sense.

But to a three-dimensional being, “up-and-down” are obvious. We can take any of these surface-dwellers and:

• lift them up off of their surface,
• reach into their insides and manipulate them without having to cut into them,
• teleport them from one location to another by moving them through the third dimension,
• or even to move ourselves down onto their surface, interacting with them with a cross-section of our own bodies.

The fact that they cannot perceive this extra, third dimension is not necessarily an argument against its existence.

What we can constrain, though, is what the properties of such an extra dimension can (or cannot) possess. For example, if a being living on that two-dimensional surface spoke, how would the sound waves that they emitted travel and spread out? Would they remain confined to the two-dimensional Universe, or would they leak out into the three-dimensional Universe? If you were a three-dimensional observer watching these flatlanders go about their business, would you be able to overhear their conversations from outside their two-dimensional surface, or would the sound fail to travel through this third dimension?

You can figure this out even if you’re a two-dimensional creature bound to living on that flat, two-dimensional surface. If you listen to an identically generated sound from a variety of different distances, you can measure how loud that arriving signal sounds to you, and that allows you to determine how the sound is spreading out. Is it spreading out like a circle, where its energy is confined to just two dimensions? Is it spreading out like a sphere, diluting across three dimensions?

In three spatial dimensions, signals like the intensity of sound, the flux of light, even the strength of the gravitational and electromagnetic forces, they all fall off as one over the distance squared: spreading out like the surface of a sphere. This information tells us two compelling pieces of information about the number of dimensions in the Universe.

1. If there are large extra dimensions — dimensions that are macroscopic in some sense — the forces and phenomena in our Universe don’t “leak” into them. Somehow, the particles and interactions that we know of are confined to our 3 space (and 1 time) dimensions; if there are extra dimensions of any sort of appreciable size, they do not have observable effects on the particles that we observe.
2. Alternatively, there could be very small extra dimensions, and the effects of various forces, particles, or interactions could show up on those very small scales: with forces spreading out as one over the distance cubed (for four spatial dimensions) or even to some higher power.

In the case of very small extra dimensions, this is something we can test.

For example, by bringing two charged particles extremely close together, we can measure the attractive or repulsive forces between them. In particle accelerators, like the Large Hadron Collider at CERN, we can collide charged particles with one another at tremendous energies, getting them down to separation distances on the order of ~10^-18 meters or so. If there were deviations from the expected behavior of the electromagnetic force at these energies, our precision experiments would have revealed it. For the strong, weak, and electromagnetic forces, there is no evidence for extra dimensions down to these exquisite precisions.

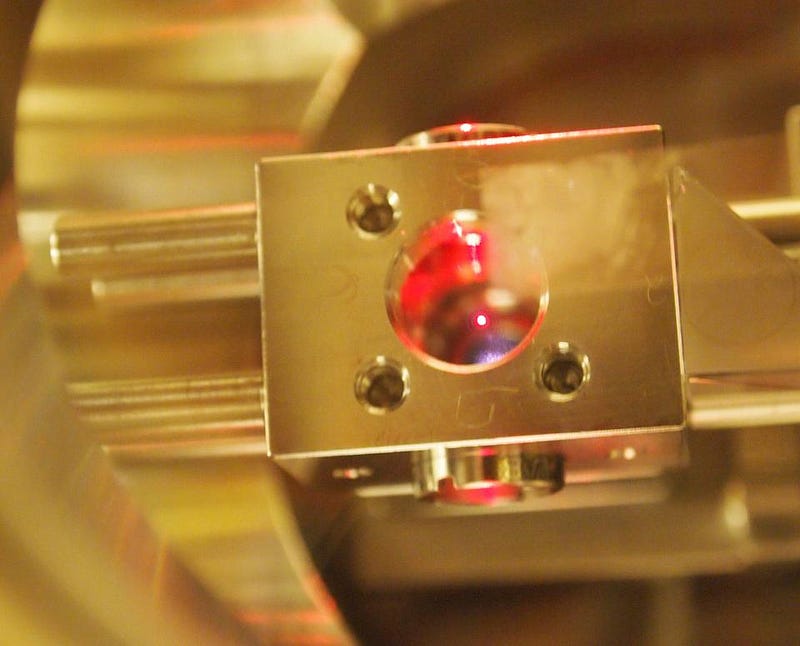

But for gravitation, it’s much more difficult. Because gravity is so mind-bogglingly weak, it’s a challenge to measure the force of gravity on even modestly small scales. In recent years, they’ve gotten down to testing gravity below the ~1 millimeter scale, down to micron-level scales. The results, excitingly, show that gravity doesn’t “leak” into extra dimensions down to any observable scales, but there’s still a long way to go.

In principle, there are no constraints on having very small extra dimensions below our experimental constraints. Numerous scenarios — warped extra dimensions, flat extra dimensions, extra dimensions that only affect gravitation, etc. — are very difficult to rule out; the only superior constraints we could hope for are either to build a larger, more powerful collider, or to harness cosmic rays for precision purposes. Until those arise, we have to admit that, from scales of about ~10^-19 meters all the way down to the Planck scale at ~10^-35 meters, we could have one or more extra spatial dimensions, and we have no tests that have constrained those possibilities.

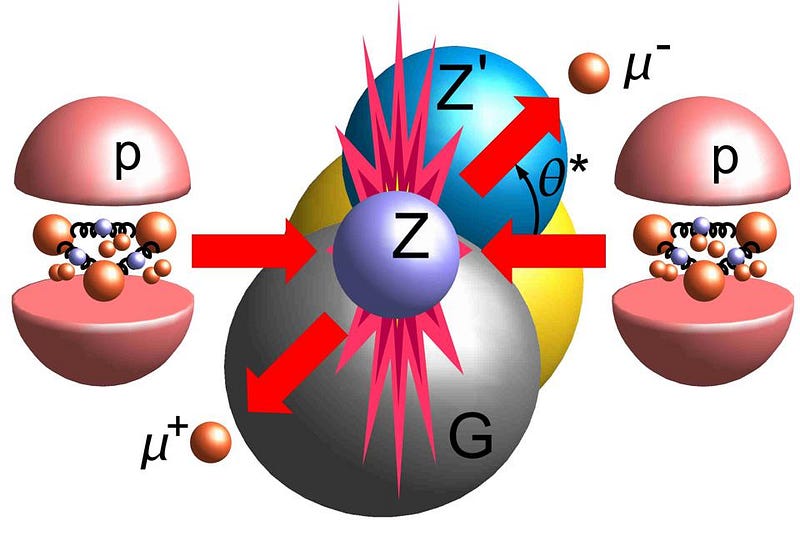

In fact, this is largely what string theory hypothesizes: that there’s not just one extra spatial dimension, but many of them — perhaps six — that are below the experimental limits of detection. It is, of course, eminently possible for extra dimensions to exist, they simply are compelled to be very small. If this were the case, there would be no way of knowing it right now, but with future experiments that were more powerful, we could, perhaps, uncover them. We might even learn of their existence via new particles inherent to these extra dimensions: Kaluza-Klein particles.

Even without resorting to exotic field theories with many new parameters, extra dimensions could exist within the context of relativity alone. About 40 years ago, two physicists who specialized in General Relativity — Alan Chodos and Steve Detweiler — wrote a paper demonstrating how our Universe could have arisen from a five-dimensional Universe: with one time and four spatial dimensions.

What they did was take one of the exact solutions in General Relativity, the Kasner metric, and apply it to the case of having an extra dimension: four spatial ones instead of three. In the Kasner metric, space cannot expand isotropically (the same in all directions), which is the Universe we clearly have.

So why would we consider it? Because, as they showed, it has the properties that one of the dimensions will contract over time, getting smaller and smaller until it’s below any threshold we care to observe. When that occurs — i.e., when that one particular spatial dimension is small enough — the remaining three spatial dimensions don’t just appear isotropic, but also homogeneous: the same everywhere. In other words, by starting with four spatial dimensions and allowing one to contract, you can get a Universe that looks remarkably like ours out. The paper had the lovely title, “Where has the fifth dimension gone?”

There is one other possibility for where extra dimensions could be, and it goes back very much to the original scenario we envisioned: us, as three-dimensional beings, with access to beings that were confined to a two-dimensional sheet. Only, this time, we’re the sheet: we’re confined to accessing three spatial dimensions, but that those three dimensions serve as a boundary for a larger, higher-dimensional space.

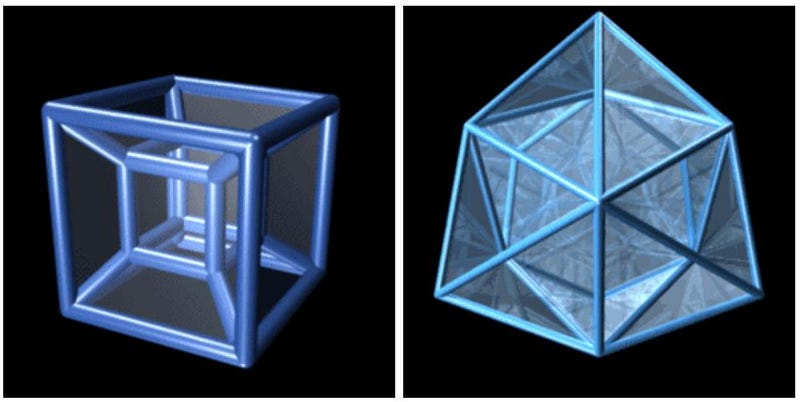

An example of this would be something like a hypersphere or a hypertorus: a four-dimensional space, but with a three-dimensional boundary. That boundary would represent our Universe that we know and can access, but there would also be at least one additional dimension that we cannot see, feel, or access, but is still very much a part of the Universe.

This idea, sometimes known as the holographic Universe, possesses a number of compelling, interesting features. Some problems in physics that are very difficult to solve in three spatial dimensions, like the Wess-Zumino model, become practically trivial when you add in one extra dimension, which is what string theorist Ed Witten did, and is why the model is known today as the Wess-Zumino-Witten model.

Moreover, the holographic principle has a strong piece of mathematical evidence for it: if you take a five-dimensional anti-de Sitter spacetime, it turns out to be completely equivalent to a four-dimensional conformal field theory. In physics, this is known as the AdS/CFT correspondence, and it related certain string theories in higher dimensions to certain quantum field theories that we’re familiar with in our three-space and one-time dimensions. The conjecture was first proposed in 1997 by Juan Maldacena, and since that time it has become the most-cited paper in high-energy physics history, with over 20,000 citations.

But despite the power and promise of this theoretical framework, both on small scales and to potentially help us solve very difficult problems that plague physics in our limited three spatial dimensions, we have no direct evidence that points to the existence of these extra dimensions at all. If they were to exist, they would open up a whole new Universe of physical possibilities, and it would certainly pave the way for a new holy grail of physics: to harness and access these additional dimensions. But without evidence, their existence is purely speculative at this point.

So, how many dimensions are there in our Universe? From the direct evidence we have, there are three spatial dimensions and one time dimension, and no more are required to solve any problems or explain any phenomenon we’ve ever observed. But the possibility that extra dimensions exist remains tantalizing, as if they did exist, they could explain a great number of mysteries that exist today.

Is there a framework where gravity and the other fundamental forces unify? Perhaps, and at least one of the ones that could work involves extra dimensions. There are many problems that are very difficult to solve in three space and one time dimension, but that simplify greatly with one or more extra ones. There are a number of ways to obtain a Universe very much like our own if you start with one or more extra dimensions, and a set of very beautiful and elegant pictures that could describe our Universe.

But unless we obtain direct evidence that points towards these claims, we have no choice but to consider them as highly speculative. In physics, as in all sciences, it’s evidence, not popularity, that determines what is true about our Universe. Until that evidence arrives, we can remain open to extra spatial dimensions as a possibility, but the only responsible position is to remain skeptical.
