Binary pulsars are doing what no other measurement has done: measure our galactic acceleration directly.

Even though the majority of the matter that makes up our Universe may be completely invisible to our instruments, there’s one way it cannot hide from us: through its gravitational effects. The presence of mass, no matter what type of mass it is, will inevitably curve the fabric of space. That curved space then determines how everything moves through it, from atoms to light to any other particles that may exist within it.

One of the fascinating consequences of this — because it isn’t just space that curves, but the fabric of spacetime itself — is that as masses move around between a distant source and ourselves, the amount of time that it takes light to arrive should shift by very small but measurable amounts. That time difference might be only a few nanoseconds, but a sensitive enough clock should be able to see the difference. Unbelievably, we have a series of natural clocks, binary pulsars, distributed throughout the galaxy (and beyond) that could probe exactly this. In a fascinating new study led by Dr. Sukanya Chakrabarti, we now have the first measurements of dark matter in our own backyard using this method. Here’s what we know so far.

This image showcases the massive, distant galaxy cluster Abell S1063. As part of the Hubble Frontier Fields program, this is one of six galaxy clusters to be imaged for a long time in many wavelengths at high resolution. The diffuse, bluish-white light shown here is actual intracluster starlight, captured for the first time. It traces out the location and density of dark matter more precisely than any other visual observation to date. (NASA, ESA, AND M. MONTES (UNIVERSITY OF NEW SOUTH WALES))

When it comes to understanding what’s in the Universe, dark matter remains one of our most complex and difficult puzzles to solve. One of the biggest problems, of course, is that it’s entirely invisible. It neither absorbs nor emits light. It doesn’t collide or stick together, either with itself or normal matter, in any measurable amount. It doesn’t show up in any detector we’ve ever built or any experiment we’ve ever devised. If there is a signal out there waiting to be discovered, we haven’t robustly extracted it yet.

And yet, the gravitational effects of dark matter have been used by astronomers to indirectly measure its presence and amount that must be present in all sorts of situations across the Universe. Dark matter in galaxies causes the outskirts to rotate at a different rate than the stars’ mass alone predicts. Dark matter in galaxy clusters bends background light sources through gravitational lensing, and causes the individual galaxies within it to move around more quickly than predicted. When those clusters collide, dark matter separates from the normal matter, revealing an independent presence. And dark matter drives the formation of large-scale structure in our Universe, required to explain data from both deep galaxy surveys and the cosmic microwave background.

This snippet from a structure-formation simulation, with the expansion of the Universe scaled out, represents billions of years of gravitational growth in a dark matter-rich Universe. Note that filaments and rich clusters, which form at the intersection of filaments, arise primarily due to dark matter; normal matter plays only a minor role. (RALF KÄHLER AND TOM ABEL (KIPAC)/OLIVER HAHN)

But what we have very poor data on is the dark matter present within our own galaxy. Being embedded within the plane of the Milky Way makes measurements that we can easily take of other galaxies incredibly challenging here within our own. If you want to estimate how much dark matter there is within our galaxy, the typical procedure is to do the following:

measure the stars, gas, dust, and other normal matter that we can see,
compute how much overall normal matter there is,
measure the speed and direction of individual stars in our vicinity, both radial (along the line-of-sight) and transverse (perpendicular to our line-of-sight) velocities,
assume the galaxy is in equilibrium, where stars are in stable orbits around the galactic center,
and then calculate what the influence of dark matter needs to be.

This is what’s known as a kinematical method, because it’s based on the velocities we measure, which in turn allow us to derive an acceleration, which (from F = ma) allows us to calculate the gravitational force.

Many galaxies, such as the grand spiral galaxy Messier 51, also known as the Whirlpool galaxy, have sweeping, extended spiral arms, owing to their gravitational interactions with the neighboring, nearby galaxies that gravitationally influence them. The Milky Way is not isolated, and the influence of some of the nearby galaxies may challenge our assumption that the Milky Way itself is a system in equilibrium. (NASA, ESA, S. BECKWITH (STSCI) AND THE HUBBLE HERITAGE TEAM (STSCI/AURA))

But are we really doing a good job if this is how we’re calculating dark matter? Not necessarily. It’s very easy to assume that the stars in our galaxy work exactly like the planets in our Solar System do: that there’s a force pointing towards the galactic center accelerating these stars, keeping them in a regular, elliptical path. We assume, in other words, that our galaxy is a galaxy in equilibrium, and that the kinetic energy of each individual star’s motion balances, in a particular way, the gravitational potential energy of the galaxy.

But what if it doesn’t? We know that there are galaxies close by, like the Magellanic Clouds and even Andromeda, that are tugging on our galaxy. The same limitations on our perspective that prevent us from easily measuring all sorts of properties — the number of spiral arms in our galaxy, the presence and extent of our central bar, the total amount of star formation occurring, etc. — also keeps us from knowing whether (and by how much) our galaxy is being gravitationally disrupted. For all we know, we may not be in the exact equilibrium we continue to assume we’re in.

The Milky Way has two major arms, called the Perseus Arm and the Scutum-Centaurus Arm. There are also two minor arms, and two smaller spurs. Earth, its Sun, and the rest of our solar system, is embedded within the Orion spur. While the general features of the Milky Way are thought to match this picture, the finer details of the galaxy are largely unknown. Note how much less detailed this is than pictures of many nearby and more distant galaxies. (NASA/JPL-CALTECH/R. HURT (SSC/CALTECH))

That’s where the incredible science of binary pulsars comes into play. In terms of natural clocks, there’s nothing in the Universe that’s quite as good as a pulsar, and of a specific type of pulsar known as a millisecond pulsar: the fastest-spinning objects known to humanity, rotating at about 70% the speed of light. These pulsars are actually neutron stars with very strong magnetic fields, where the rotational axis of the pulsar itself doesn’t quite line up with the axis of the magnetic field.

The magnetic axis has two or more “poles” to it, and each time one of those poles flashes across your line-of-sight, you see a pulse of electromagnetic radiation. Because these pulsars rotate so regularly, they pulse regularly as well: up to nearly 1000 times per second in the fastest cases. If you watch a millisecond pulsar do its thing, you can literally look away for something like a year, and when you return, you can know whether one billion pulses have occurred or whether it’s one billion and one. We’re that precise.

The two best-fit models of the map of the neutron star J0030+0451, constructed by the two independent teams who used the NICER data, show that either two or three ‘hot spots’ can be fitted to the data, but that the legacy idea of a simple, bipolar field cannot accommodate what NICER has seen. Some neutron stars pulse, and the ones whose pulses pass by us are known as pulsars. (ZAVEN ARZOUMANIAN & KEITH C. GENDREAU (NASA GODDARD SPACE FLIGHT CENTER))

However, what’s even more interesting is a binary pulsar system, where a pulsar is in a binary orbit with another compact companion. That companion can be a white dwarf, a neutron star, another pulsar, or possibly even a black hole. The arrival time of these pulses is so precise that measuring pulse variations tells us how the system is changing over time, enabling us to measure subtle effects very precisely.

Long before the first gravitational waves were ever detected, we began discovering these truly remarkably systems of binary pulsars. With two compact masses orbiting one another while spinning, there’s a lot going on. The system will orbit their mutual center of mass, moving along our line-of-sight as well as transverse to it, and the orbit will change over time ever so slightly. As they orbit each other, for example, they’re predicted to radiate energy away in the form of gravitational waves at a particular rate. The measurement of this for the first binary pulsar discovered — the Hulse-Taylor binary — was the first indirect confirmation of gravitational waves, whose existence was later confirmed directly by LIGO and other gravitational wave detectors.

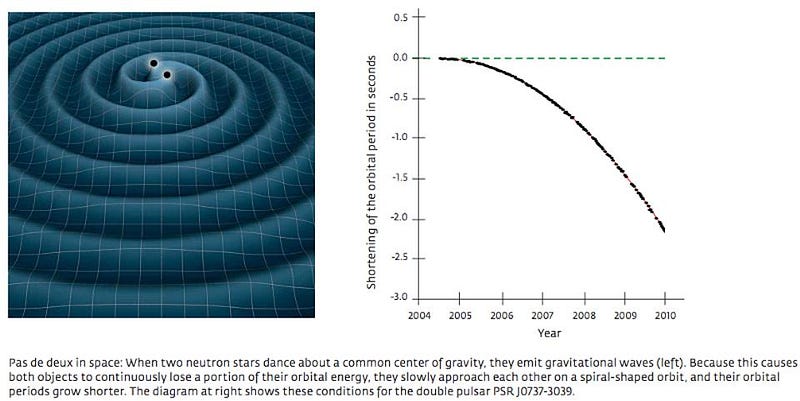

The rate of orbital decay of a binary pulsar is highly dependent on the speed of gravity and the orbital parameters of the binary system. We have used binary pulsar data to constrain the speed of gravity to be equal to the speed of light to a precision of 99.8%, and to infer the existence of gravitational waves decades before LIGO and Virgo detected them. However, the direct detection of gravitational waves was a vital part of the scientific process, and the existence of gravitational waves would still be in doubt without it. (NASA (L), MAX PLANCK INSTITUTE FOR RADIO ASTRONOMY / MICHAEL KRAMER (R))

As the pulsars spin, the ultra-strong magnetic fields that they possess, which can be trillions of times stronger than Earth’s magnetic field, can create an effect of electromagnetic braking, changing the spin period. However, this effect doesn’t change the pulsar’s orbital period, meaning that if we can measure:

the orbital period of the binary system,
how that period changes over time,
and we can successfully account for gravitational waves,

there will be just one component left over: how the gravitational field of the galaxy causes this system to accelerate.

This is subtle, but remarkable. When we measure how quickly individual stars are moving, we can only infer the gravitational effects of the galaxy by making certain assumptions. But, because of the physics at play in these binary pulsar systems, when their orbital period changes, the combination of what the period is as well as how quickly the period changes over time allows us to measure those gravitational effects directly.

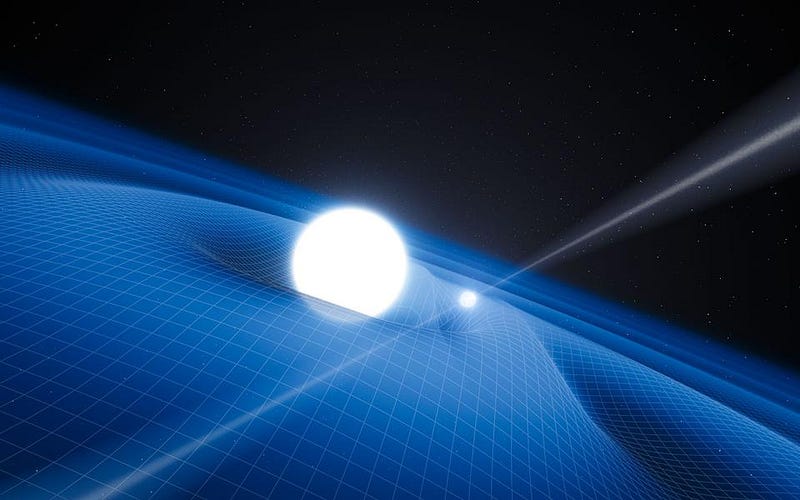

This illustration shows a binary pulsar, which is a pulsar orbiting a binary companion, as well as the ripples in spacetime that emerge from the emission of gravitational waves. In addition to these effects, the orbital period also changes due to the external influence of the gravitational potential of the galaxy in which they exist: something that has now been directly measured for the first time. (ESO/L. CALÇADA)

In their latest work, the team of researchers led by Dr. Chakrabarti was able to identify 14 binary pulsars located within about 3,000 light-years of our Sun that had the right properties to be useful in figuring this out. What you have to do is measure these pulsars and their orbital periods over long periods of time: many years or even decades, and see not only what those periods are, but how they’re changing.

For the purposes of cosmology — the study of what makes up the Universe and how — this is an incredibly interesting measurement to make. In theory, there are two types of matter:

baryonic (normal) matter, which we expect should be packed down into a thin disk in our galaxy, and which should be primarily responsible for the acceleration of objects very close to the galactic plane,
and dark matter, which should be extended in a large, diffuse, spherical halo around the galaxy, and which should significantly affect the acceleration of objects that are out of the galactic plane.

A galaxy that was governed by normal matter alone (L) would display much lower rotational speeds in the outskirts than towards the center, similar to how planets in the Solar System move. However, observations indicate that rotational speeds are largely independent of radius (R) from the galactic center, leading to the inference that a large amount of invisible, or dark, matter must be present. Within our own galaxy, these measurements are extraordinarily difficult to make, and thus we must rely on other techniques. (WIKIMEDIA COMMONS USER INGO BERG/FORBES/E. SIEGEL)

Because the Sun itself is virtually right in the middle of the galactic plane, located around 27,000 light-years from the galactic center, we’d want to get about 5,000 light-years out of the plane to detect dark matter’s influence, and about ~12,000 light-years away in the plane of the disk (in either direction) to find how dark matter was affecting the system. Since all of these pulsars were located within ~3,000 light-years of our location, we’d expect that they’d show virtually no indication of the influence of dark matter.

That’s, in fact, exactly what Chakrabarti’s team found. Making the first robust, direct measurement of the galactic acceleration without assuming the galaxy is in equilibrium, they found that there are about ~750 planet Earths worth of mass in every cubic light year of space: just 0.23% the mass of the Sun. Since we have other ways of measuring how much normal matter is present, we can conclude that between 85%-100% of the matter influencing galactic acceleration in our neighborhood is normal matter, and that dark matter — as predicted — barely has any effects at all.

According to models and simulations, all galaxies should be embedded in dark matter halos, whose densities peak at the galactic centers, but whose effects are more easily seen far from the galactic disk, which is dominated by normal (baryonic) matter. A direct measure of the galactic potential can be obtained through the measurement of the periods and period changes of binary pulsar systems. (NASA, ESA, AND T. BROWN AND J. TUMLINSON (STSCI))

This is the first time this powerful technique, of using both the orbital periods and the change in orbital periods of binary pulsars, has been leveraged to measure the galactic acceleration of objects in our own neighborhoods. It also marks the first time that, successfully, we’ve measured what the gravitational potential of our own galaxy is without needing to resort to assumptions that may not necessarily be well-founded.

Moreover, and perhaps most excitingly, three big advances should be coming in the near future: longer baselines of time over which these pulsars can be observed, additional binary pulsars that will help reduce the statistical errors in the study, and, with improved instrumentation and techniques, binary pulsars at greater distances. This last one is the most interesting to many, as they’ll either directly reveal our galaxy’s dark matter, or cast significant doubt on our assumptions that a large halo of dark matter actually surrounds our own galaxy. With more and better data on the way, these binary pulsar systems are finally shedding light on the dark matter that’s eluded us for so long.
