What Will Our First Image Of ‘Earth 2.0’ Look Like?

This artist’s impression of the Nu2 Lupi planetary system shows three exoplanets. If we wanted to observe an Earth-sized planet at an Earth-like distance from a Sun-like star, we would need to block out the Sun-like star’s light to about 1 part in 10-to-100 billion. This is a difficult, but not impossible, task for modern technology. (ESA / CHEOPS COLLABORATION)

If our nearest star has an Earth-like planet, here’s how we’ll see it.

As seen from up close, the signs of not only life, but our intelligent, technologically advanced human civilization are unmistakable. Our planet contains continents, oceans, and partial cloud cover, as well as polar icecaps. As the seasons change, the continents change color between green and browns and white, depending on the success of vegetation and/or the cover of ice and snow. The clouds change on a much faster timescale, sometimes covering the continents, sometimes the oceans, and sometimes a bit of both. Meanwhile, the icecaps advance and retreat dependent on our axial tilt’s orientation, providing yet another annual variation in our surface’s properties.

There are other signatures of terrestrial life on our world. The carbon dioxide concentration in our atmosphere changes seasonally, and continues to rise steadily on an annual basis; the atmosphere additionally contains chemical compounds that only exist because they were added there owing to human activity. At night, a small amount of visible light radiation gets emitted from our surface — owing to artificial lighting at night — while a high-enough resolution image, such as the ones taken from low-Earth orbit by the Interational Space Station, can reveal cities, farms, and other large-scale features on our surface. It’s enough to make us wonder: if we’re lucky enough to discover another similarly “living” planet, what will we see? It’s a fascinating question that’s only limited by our technological developments.

The Earth at night emits electromagnetic signals, but it would take a telescope of incredible resolution to create an image like this from light-years away. Humans have become an intelligent, technologically advanced species here on Earth, but even if this signal were smeared out, it might still be detectable by next-generation direct imaging. (NASA’S EARTH OBSERVATORY/NOAA/DOD)

The first thing you have to recognize is that if we want to see any of the planets that are out there around any star beyond our own Sun, we’re going to need to find a way to directly observe that planet despite its proximity to its parent star. In many ways, that’s an incredible challenge for astronomy: making out a much fainter light source close by a much brighter, larger light source is an incredible challenge. Just as it’s incredibly difficult to make out a single firefly when it’s in close proximity to the disk of the Sun, it’s extremely challenging to make out the light from a planet when a much, much brighter star is in such close proximity to it.

If we were to view our own Solar System from a great distance, we’d find that the Sun was much, much brighter than the Earth: about 100 billion (1011) times brighter, corresponding to a difference of ~27.6 astronomical magnitudes. As viewed from Earth, that’s about the same difference between seeing the planet Venus — the brightest single object other than the Moon in the night sky — and Pluto’s moon Nix: the smallest, faintest moon in the Plutonian system, discovered only in 2005.

When starlight passes through a transiting exoplanet’s atmosphere, signatures are imprinted. Depending on the wavelength and intensity of both emission and absorption features, the presence or absence of various atomic and molecular species within an exoplanet’s atmosphere can be revealed through the technique of transit spectroscopy. (ESA/PLANETARY TRANSITS AND OSCILLATIONS OF STARS (PLATO) MISSION)

There are ways to probe the properties of a planet without direct imaging, and we’ve already been successful at leveraging some of them. For example:

  • when a star gravitationally pulls on an orbiting planet, the planet pulls back on the star, causing the star to move in response to the planet’s presence,
  • when a planet passes between its parent star and our line-of-sight, it obscures a portion of the star’s disk, enabling us to notice a periodic dip in the star’s brightness,
  • and, if the planet that intervenes between the star and our line-of-sight has an atmosphere, then a tiny portion of that starlight will filter through that planet’s atmosphere.
Travel the Universe with astrophysicist Ethan Siegel. Subscribers will get the newsletter every Saturday. All aboard!

The first example is known as the radial velocity method in exoplanet sciences, and it allows us to determine the mass and orbital period of the exoplanet that tugs on the star. The second is known as the transit method — leveraged most famously by NASA’s Kepler mission — and gives us the physical radius and orbital period of the exoplanet. And finally, the third can only be leveraged at present for a small fraction of transiting exoplanets, but is known as transit spectroscopy. With the right equipment, such as NASA’s upcoming James Webb Space Telescope, we should be able to probe the atmospheres of many different planets for compounds like water, methane, ammonia, carbon dioxide, and many signatures, or at least hints, of life and complex chemistry.

Direct imaging of four planets orbiting the star HR 8799, 129 light-years away from Earth, a feat accomplished through the work of Jason Wang and Christian Marois. The second generation of stars may have already had rocky planets orbiting them, but our ability to directly image exoplanets is constrained to giant exoplanets at great distances from bright stars. (J. WANG (UC BERKELEY) & C. MAROIS (HERZBERG ASTROPHYSICS), NEXSS (NASA), KECK OBS.)

But what if we wanted to go a step farther than our current or just on-the-horizon technology is capable of? What if we wanted to directly image exoplanets?

Currently, we can do it, but only for a very small subset of exoplanets. In particular, the only planets our modern telescopes — both the larger diameter ground-based ones and the smaller diameter but above-the-atmosphere space-based ones — are capable of resolving are planets that are simultaneously large (and reflective) compared to their parent stars and also well-separated in space, or at a large orbital distance, from their parent stars.

The way we do it at present, even with these highly restrictive parameters being necessary, is through the use of a coronagraph. Originally leveraged to block out the disk of our Sun, enabling solar astronomers to view the solar corona without having to wait for a total solar eclipse, the use of a coronagraph, when applied to exoplanet systems, can enable us to block out the light of the parent star sufficiently so that some of the orbiting planets, perhaps even the innermost planets, can become visible with the right equipment.

The Sun’s atmosphere is not confined to the photosphere or even the corona, but rather extends out for millions of miles in space, even under non-flare or ejection conditions. Just as we can use a coronagraph to block the Sun’s light and view the corona and emitted flares, that same principle can be used to block distant starlight and view planets around it. (NASA’S SOLAR TERRESTRIAL RELATIONS OBSERVATORY)

Unfortunately for most applications, this is still highly limited. Coronagraphs can block out the light of the star, but only to a point. Remember, to get an Earth-like planet around a Sun-like star, we’d need to be able to block the Sun’s light to within 1 part in 100 billion just to have a chance at seeing the Earth behind the glare of the Sun. The best coronagraphs we have today are impressive, but can only block the star’s light in a range from 1 part in 100 million up to 1 part in 10 billion at most. We’re still quite a bit away, technologically, from giving us the light ratios we need.

While there is hope that coronagraph technology will continue to improve, there is a better option for blocking out the light from a star to better see the planets orbiting it. Instead of using a coronagraph, where the optical “mask” that blocks the star’s light is close to the telescope mirror itself, you could instead use a different kind of mask with a different set of geometrical optics to block out the star’s light to an even more significant degree: a starshade.

The Starshade concept could enable direct exoplanet imaging even superior to what Webb will offer, and could be attached to a proposed observatory like Nancy Roman/WFIRST or LUVOIR to at last reveal Earth-sized planets around Sun-like stars. With its mathematically ideal shape, this could enable imaging and characterizing planets at ~1 AU that are up to 10 or even 100 billion times fainter than their parent star. (NASA AND NORTHROP GRUMMAN)

This sunflower-shaped disk in space looks different from a spherical coronagraph for a simple reason: it’s meant to completely eliminate the constructive interference that would arise from a spherical obstacle. When light — which has wave-like properties — encounters an obstacle, the light from the edges of the obstacle gets optically distorted, creating a familiar phenomenon of concentric rings both inside and outside the shadow-cone created by the obstacle itself.

With a starshade, however, the shape of the obstacle is designed so that it’s basically optically perfect: all of the constructive interference is eliminated. At design sensitivity, it can provide contrast ratios approximately 10-to-100 times greater than a similar coronagraph, unlocking the potential to finally directly image Earth-sized planets at Earth-like distances around Sun-like stars. If we want to directly image whatever world might happen to fit our definition of Earth-like, a starshade is the slam-dunk way to get there.

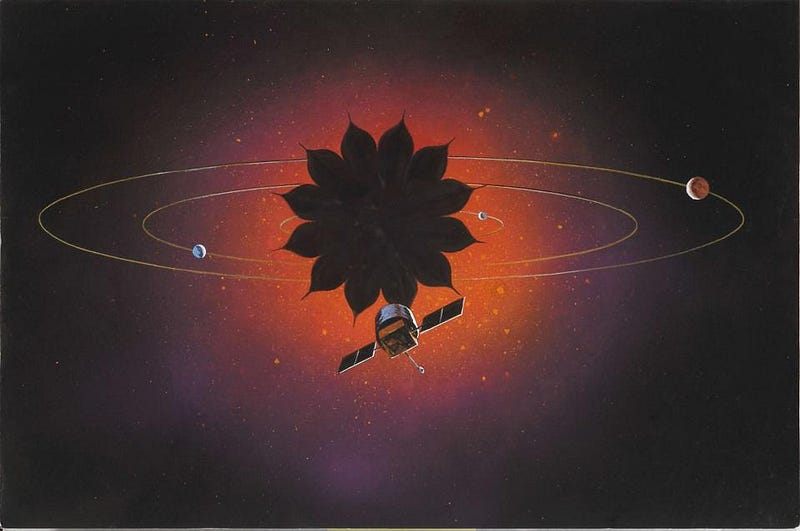

This artist’s concept shows the geometry of a space telescope aligned with a starshade, a technology used to block starlight in order to reveal the presence of planets orbiting that star. From tens of thousands of kilometers away, the starshade and the telescope must achieve and maintain perfect alignment to enable direct exoplanet imaging, but this is possible with current technology. (NASA/JPL-CALTECH)

Of course, a starshade itself has limitations that a coronagraph doesn’t possess. A coronagraph is part of a telescope’s assembly, meaning that when you rotate the telescope to point at a different target in the sky, the coronagraph moves with the telescope. With proper calibration and alignment, it will take at most only hours to set yourself up for observing your target star with a coronagraph. Over the span of a week, particularly with a space telescope, you could observe perhaps up to ~20 unique Earth-sized planets around Sun-like stars if you can reach the appropriate light-reduction thresholds.

But a starshade has to be far, far away from the telescope to be effective. That means it needs to be enormous, so that it’s the right angular size to block the parent star’s disk at its substantial (tens of thousands of kilometers) distance from the telescope. It needs to be perfectly, precisely, optically aligned with both the telescope and the star in question, and it needs to remain perfectly aligned over the course of the observation, taking precision flying to a new extreme. And then — at the end — it needs to fly off towards the next target, traveling a great distance once again. Over the span of a year, a single starshade/telescope combination can only image the planets around a few handfuls of stars, at most. However, owing to the superior light-reduction capabilities of a starshade, the amount of observing time required to reveal the features of an exoplanet’s spectrum will be shorter; once the starshade is in place, the advantages over a coronagraph alone are enormous.

With the proposed HabEx mission, for example, up to ~22 systems per year could be measured and characterized with a starshade; over its planned 5-year mission, it could obtain spectacular information about more than 100 Earth-sized exoplanets.

If the Sun were located 10 parsecs (33 light years) away, not only would LUVOIR be able to directly image Jupiter and Earth, including taking their spectra, but even the planet Venus would yield to observations with a sufficiently advanced coronagraph or a starshade. The outer planets, from Saturn through Neptune, would be perceptible as well. (NASA / LUVOIR CONCEPT TEAM)

This technology, whenever it comes to fruition, should give us our very first direct images of Earth-sized exoplanets at Earth-like distances around Sun-like stars. Whether such a planet qualifies as an “Earth-like” world, complete with things like liquid water on its surface, a thin but substantial atmosphere, and biologically friendly compounds populating its outermost layers, remains to be seen. Based on the other properties of planets we can measure, we have a slew of candidates for Earth-like planets, but no compelling data either way towards determining which of these worlds, if any, are truly like Earth.

A space telescope that was only about half a meter in diameter could find an Earth-like planet around a star like Alpha Centauri; one the size of LUVOIR would be able to probe hundreds of nearby stars for exoplanets. But even with the next-generation technologies that we envision — including the two proposed space-based missions HabEx and LUVOIR — we’re going to be unable to resolve these planets as more than a single pixel in our instruments. That’s okay, however, because even with a single pixel that happens to be a direct image of an Earth-sized exoplanet, we can both watch it over time to see how it varies, and observe it spectroscopically, in multiple different wavelengths of light all at once. These two facts, combined, will enable us to extract an enormous amount of information.

The concept design of the LUVOIR space telescope would place it at the L2 Lagrange point, where a 15.1-meter primary mirror would unfold and begin observing the Universe, bringing us untold scientific and astronomical riches. From the distant Universe to the smallest particles to the lowest temperatures and more, the frontiers of fundamental science are indispensable for enabling tomorrow’s applied science frontiers. Additionally, a slew of Earth-sized exoplanets, including those at Earth-like distances around Sun-like stars, would be directly revealed. (NASA / LUVOIR CONCEPT TEAM; SERGE BRUNIER (BACKGROUND))

Any planet that we observe in multiple different wavelengths for long periods of time would show variations, and those variations will be incredibly informative. Just from a single pixel of an exoplanet that changes over time, we’d be able to learn:

  • what the rotation rate of the planet is,
  • how much of its surface is covered in clouds over time,
  • what the reflectivity and composition of the clouds are,
  • whether there are continents and oceans on the world, and if so, what percentage of the surface is covered by both,
  • whether there are icecaps, and how those icecaps grow and retreat over the seasons,
  • whether and how the continents change color over the course of a complete planetary revolution,
  • whether, from orbital variations, the planet possesses a large moon or set of moons,
  • and whether, if there’s a strong enough Faraday rotation effect, the planet displays evidence of having a planet-wide magnetic field.

This is an incredible amount of information, and something we should celebrate when we first manage to acquire it about any world beyond our Solar System. However, there’s one additional step that we may someday take: building a telescope large enough to image these Earth-sized planets as more than a single pixel.

Left, an image of Earth from the DSCOVR-EPIC camera. Right, the same image degraded to a resolution of 3 x 3 pixels, similar to what researchers will see in future exoplanet observations. If we were to build a telescope capable of obtaining ~60–70 micro-arc-second resolution, we’d be able to image an Earth-like planet at this level at the distance of Alpha Centauri. (NOAA/NASA/STEPHEN KANE)

This would be an enormous, unprecedented undertaking, but one that isn’t technically impossible. If you assume that around one of the two Sun-like stars in the Alpha Centauri system, 4.3 light-years away, is an Earth-sized world at an Earth-like distance, a telescope that had better resolution than ~65 micro-arc-seconds would be able to begin resolving actual features on this world in real-time. If there are artificial lights on the night side, a telescope this large would be able to discover them. If there are large, civilization-scale modifications that have taken place on this world, a telescope like this would be able to detect them directly.

The only problem? In order to obtain that level of resolution, even from a space telescope, you’d need to build an optical telescope that was between 2 and 3 kilometers in diameter. That’s approximately ~100 times the diameter of the largest ground-based telescopes presently under construction! Still, when you think about the possibility that there could be an Earth-like planet just 4.3 light-years away, and that a telescope with fathomable, near-future technology could reveal its surface features, it sure does highlight the possibilities for astronomy to truly reveal the first inhabited planet beyond our own Solar System.
