The Dream Of String Theory Is An Unlikely Broken Box

There’s a lot to get rid of if we want to get only our Universe out of String Theory.


A lot of people, when they learn about String Theory for the first time, are taken aback by what a beautiful, powerful idea it is. When we look at our Universe and discover the way it is, we find that it follows a certain structural pattern that — for as intricate as it is — seems to follow rules that apply very differently to different components of the theory. We have, for example:

  • unequal numbers and generations of fermions versus bosons,
  • an abundance of matter over antimatter,
  • a Universe filled with electric charges but no magnetic charges,
  • and plenty of left-handed neutrinos and right-handed antineutrinos but none that are the other way around,

there are a lot of symmetries that you could imagine would be respected, but simply aren’t. You could imagine that the three forces of the Standard Model would unify into a single one at high energies in some sort of grand unification. You could imagine that for every fermion, there would be a corresponding boson, as in supersymmetry. And you can imagine that, at the highest energies of all, that even gravity gets unified with the other forces in a so-called “theory of everything.”

That’s the brilliant, beautiful, and compelling idea at the core of String Theory. It’s also has absolutely no experimental or observational evidence in favor of it at all. Here’s why the hope of String Theory, when you get right down to it, is nothing more than a broken box of dreams.

In theory, there could be more than three spatial dimensions to our Universe, so long as those “extra” dimensions are below a certain critical size that our experiments have already probed. There is a range of sizes in between ~10^-19 and 10^-35 meters that are still allowed for a fourth spatial dimension, or for any additional number of extra dimensions. (FERMILAB TODAY)

Every time, as a theorist, you add something new to your theory — a new ingredient, a new force or interaction, a new dimension, a new coupling, etc. — you have to do two things to accommodate it. The first thing you have to do is establish that this new addition is compatible with the prevailing theory and all of our observations: you can’t add something to your theory that has already been ruled out by the existing data; that’s what we call a non-starter in the field.

But the second thing is a little bit trickier: when you’re adding a new component that only exists at higher energy scales than you’re capable of probing, you have to find a way to get rid of it before you get to the low-energy Universe we have today. For String Theory, that’s an incredibly tall order. The Universe we have today is much, much less symmetric than String Theory predicts today, and if we want String Theory to be at all consistent with the reality we observe, we have to look at the differences between what String Theory predicts and what the Universe we have today is actually like.

The particles and forces of the Standard Model. Any theory that claims to go beyond the Standard Model must reproduce its successes without making additional predictions that have already been shown to not be true. Pathological behavior that would already be ruled out is the largest source of constraints on beyond-the-Standard Model scenarios. (CONTEMPORARY PHYSICS EDUCATION PROJECT / DOE / NSF / LBNL)

Our Universe, if we’re being comprehensive about it, is a pretty complicated place. In it, we have:

  • The four fundamental forces of nature: gravitation, the electromagnetic force, the strong nuclear force, and the weak nuclear force.
  • The particles that make up the Standard Model, which include the quarks and leptons, the gauge bosons, and the Higgs particle.
  • Coupling constants that determine the strength of the interactions which occur, and those constants change strength with energy.
  • Four total dimensions: three of space and one of time.
  • And the laws of physics as we know them: General Relativity for gravitation, and Quantum Field Theories for the other three (inherently quantum) forces.

Two of the forces, the weak nuclear force and the electromagnetic force, are known to unify into the electroweak force at high energies achievable at certain particle colliders. Many ideas — such as grand unification and supersymmetry — would involve adding new particles and interactions, but would also lead to experimental consequences like proton decay or the presence of additional particles or decay pathways not seen at colliders. The fact that these predictions haven’t panned out helps us place constraints on both of these ideas.

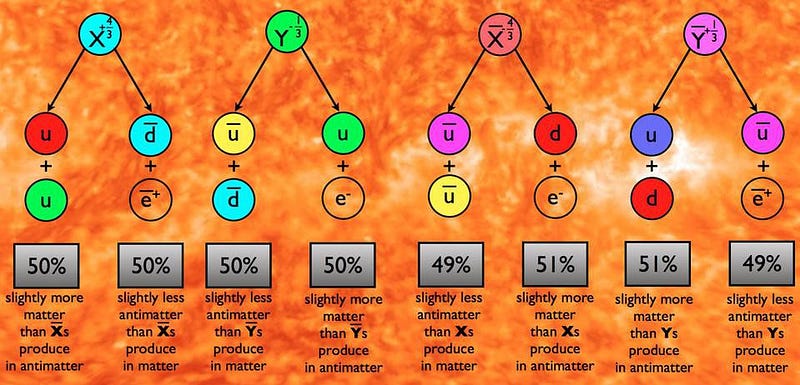

An equally-symmetric collection of matter and antimatter (of X and Y, and anti-X and anti-Y) bosons could, with the right GUT properties, give rise to the matter/antimatter asymmetry we find in our Universe today. However, searches for these superheavy X and Y bosons, as predicted in many classes of Grand Unified Theories, have come up empty, both directly and indirectly. (E. SIEGEL / BEYOND THE GALAXY)

String theory, though, goes many steps farther than either grand unification or what we know as supersymmetry does.

For grand unification, the idea is to take the three forces in the Standard Model and embed them into a larger, more symmetric structure. Instead of the particles we know with the interactions we know — with multiple disjoint frameworks corresponding to each of the forces — grand unification tries to fit the Standard Model inside a larger structure.

This might just sound like words to you, but the group theory representation of the Standard Model is SU(3) × SU(2) × U(1), where the SU(3) is the color (strong force) part, the SU(2) is the weak (left-handed) part, and the U(1) is the electromagnetic part. If you want to unify these forces into a larger framework, you’ll need a bigger group.

You can take the route of Georgi-Glashow [SU(5)] unification, which predicts new, super-heavy bosons that couple to both quarks and leptons simultaneously. You can take the route of Pati-Salam [SU(4) × SU(2) × SU(2)] unification, which adds in the right-handed particles, making the Universe left-right symmetric instead of preferring a left-handed neutrino. Or you can go even larger: to SU(6), SO(10), or still larger groups, so long as they contain the Standard Model within them.

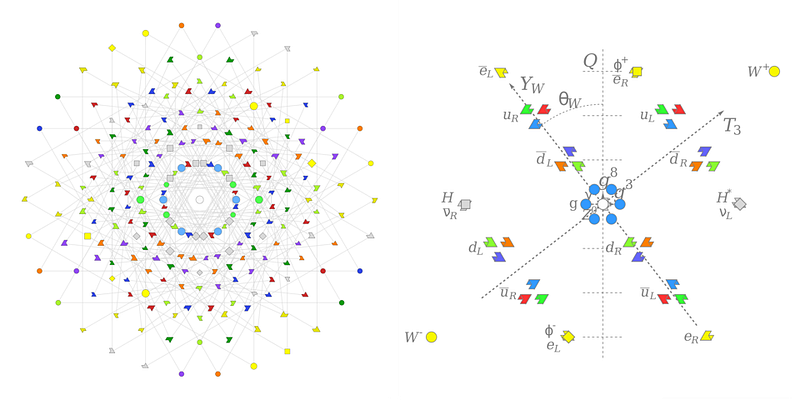

The difference between a Lie algebra based on the E(8) group (left) and the Standard Model (right). The Lie algebra that defines the Standard Model is mathematically a 12-dimensional entity; the E(8) group is fundamentally a 248-dimensional entity. There is a lot that has to go away to get back the Standard Model from String Theories as we know them. (CJEAN42 / WIKIMEDIA COMMONS)

The problem, of course, is that the larger you go, the more stuff there is to get rid of, and the more explaining there is to do if we want to understand why these extra components to reality don’t show themselves, either directly or indirectly, in our experiments, measurements, and observations of the Universe. The proton doesn’t decay, so either the simplest model of grand unification is wrong, or you have to pick a more complicated model and find a way to evade the constraints that rule out the simpler models.

If you want to talk about unification and group theory in the context of String Theory, however, your group suddenly has to become enormous! You can fit it into one of the SO groups, but only if you go all the way up to SO(32). You can fit it into two of the exceptional groups crossed together — E(8) × E(8) — but that’s enormous, as each E(8) contains and is larger than SU(8), mathematically. This isn’t to say it’s impossible that String Theory is correct, but that these large groups are enormous, like a block of uncut marble, and we want to get just a tiny, perfect statuette (our Standard Model, and nothing else) out of it.

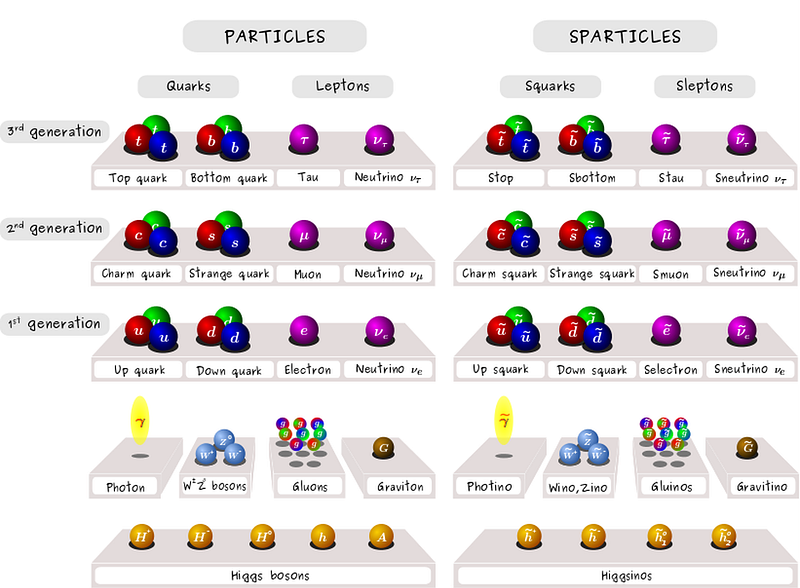

The Standard Model particles and their supersymmetric counterparts. Slightly under 50% of these particles have been discovered, and just over 50% have never showed a trace that they exist. Supersymmetry is an idea that hopes to improve on the Standard Model, but it has yet to make successful predictions about the Universe in attempting to supplant the prevailing theory. If there is no supersymmetry at all energies, string theory must be wrong. (CLAIRE DAVID / CERN)

Similarly, there’s an analogous problem that arises with supersymmetry. Typically, the supersymmetry you hear about involves superpartner particles for every particle in existence in the Standard Model, which is an example of a supersymmetric Yang-Mills field theory where N=1. The biggest problem is that there should be additional particles that show up at the energy scales that reveal the heaviest Standard Model particles. There should be a second Higgs, at least, below 1,000 GeV. There should be a light, stable particle, but we haven’t observed it yet. Even without String Theory, there are many strikes against N=1 supersymmetry.

The Standard Model, without supersymmetry, is simply the N=0 case. But if we want String Theory to be correct, we need to make nature even more symmetric than standard supersymmetry predicts: String Theory contains a gauge theory known as N=4 supersymmetric Yang-Mills theory. There’s even more stuff to hand-wave away if we want String Theory to be correct, and it all has to disappear to not conflict with the observations we’ve already made of the Universe we have.

Instead of an empty, blank, three-dimensional grid, putting a mass down causes what would have been ‘straight’ lines to instead become curved by a specific amount. The curvature of space due to the gravitational effects of Earth is one visualization of gravitation, and is a fundamental way that General Relativity differs from Special Relativity. (CHRISTOPHER VITALE OF NETWORKOLOGIES AND THE PRATT INSTITUTE)

But one of the biggest challenges for String Theory is something that’s often touted as it’s big success: the incorporation of gravity. It’s true that String Theory does, in a sense, allow gravity to be merged with the other three forces into the same framework. But in the framework of String Theory, when you ask, “what is my theory of gravity,” you don’t get the answer that Einstein tells us is correct: a four-dimensional tensor theory of gravity.

According to Einstein, the only factor in determining gravity is the presence of matter and energy. You put all the different forms of matter and energy in the Universe into General Relativity, and the Universe will evolve — expanding, contracting, gravitating, etc. — according to the stresses that these forms of matter and energy create. There are three spatial dimensions and one time dimension, and gravitation only has a tensor form: not a scalar or vector one. You might be able to add extra ingredients in, but you can’t have them play any role that disagrees with the observations we already have in hand.

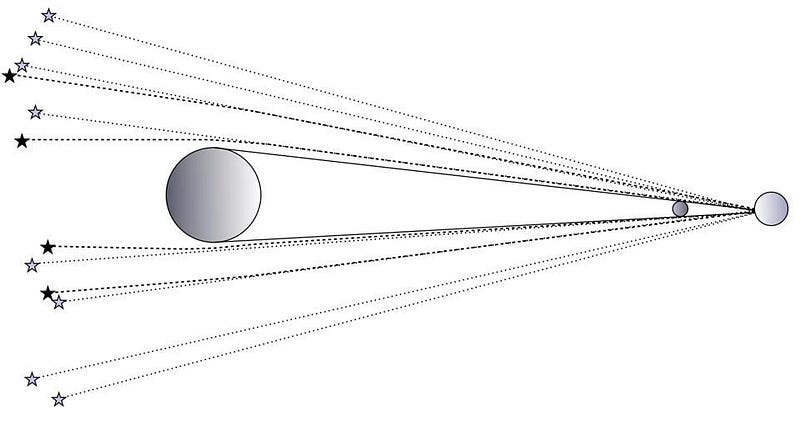

During a total eclipse, stars would appear to be in a different position than their actual locations, due to the bending of light from an intervening mass: the Sun. The magnitude of the deflection would be determined by the strength of the gravitational effects at the locations in space which the light rays passed through. The 1919 eclipse confirmed the predictions of Einstein’s General Relativity. (E. SIEGEL / BEYOND THE GALAXY)

So what does String Theory give you? Unfortunately, it doesn’t give you a four-dimensional tensor theory of gravity, but rather a 10-dimensional scalar-tensor theory of gravity. Somehow, you have to get rid of the scalar part, and also get rid of six extra (spatial) dimensions.

We had, as proposed 60 years ago, an alternative to Einstein’s General Relativity that did incorporate a scalar as well: Brans-Dicke gravity. According to Einstein’s original theory, General Relativity was needed to explain the orbit of Mercury, and why its perihelion (where it came closest to the Sun) precessed at the rate that it did. We observed a total precession of ~5600 arc-seconds per century, where ~5025 were due to the precession of the equinoxes and ~532 were due to the other planets. Einstein’s General Relativity predicted the other ~43, and that was the slam-dunk prediction he finally made in 1915 that catapulted the eclipse expedition into infamy. The 1919 revelation that light bent starlight was the ultimate confirmation of our new theory of gravity.

A solar flare, visible at the right of the image, occurs when magnetic field lines split apart and reconnect, far more rapidly than prior theories have predicted. Our Sun, despite some spurious measurements that claimed it was shaped like an oblate spheroid, is actually the most spherical object known in our Solar System. (NASA)

But by the late 1950s, some observations of the Sun had indicated that it wasn’t spherical, but rather was compressed along its poles into an oblate spheroid. If that were the case, Brans and Dicke argued, then that observed amount of departure from a perfect sphere would create an additional 5 arc-seconds of precession per century that differed from Einstein’s predictions. How to fix it? Add in a scalar component to the theory, and a new parameter: ω, the Brans-Dicke coupling constant. If ω was about 5, everything would still turn out right.

Of course, the Sun actually is a perfect sphere to a much better degree than even the Earth, and those observations were incorrect. Given the modern constraints that we have, we now know that ω must be greater than about 1000, where the limit as ω → ∞ gives you back standard General Relativity. For String Theory to be correct, we have to “break” this 10 dimensional Brans-Dicke theory down to a four dimensional Einsteinian theory, which means getting rid of six dimensions and this pesky scalar term and the coupling, ω, all of which must go away.

Quantum gravity tries to combine Einstein’s general theory of relativity with quantum mechanics. Quantum corrections to classical gravity are visualized as loop diagrams, as the one shown here in white. If String Theory is correct, then 6 spatial dimensions and the scalar (Brans-Dicke) coupling must be eliminated to recover General Relativity. (SLAC NATIONAL ACCELERATOR LABORATORY)

What all of this means is that if String Theory is correct, we have to start with a Universe that’s highly symmetric and very unlike the Universe we have today. This Universe, at some early time at very high energies, had 10 dimensions to it, had a scalar gravity component in addition to the tensor component, was unified into some very large group like SO(32) or E(8) × E(8), and was described by a maximally supersymmetric (N = 4) Yang-Mills theory.

Travel the Universe with astrophysicist Ethan Siegel. Subscribers will get the newsletter every Saturday. All aboard!

If String Theory is correct, then somehow — and nobody knows how — this ultra-symmetric state broke, and it broke incredibly badly. Six of the dimensions disappeared, and the scalar gravity component stopped mattering. The large, unified group broke very badly, leaving only our relatively tiny Standard Model, SU(3) × SU(2) × U(1), behind. And that supersymmetric Yang-Mills Theory broke so badly that we don’t see any evidence for a single supersymmetric particle today: just the regular Standard Model.

The idea that the forces, particles and interactions that we see today are all manifestations of a single, overarching theory is an attractive one, requiring extra dimensions and lots of new particles and interactions. The lack of a single verified prediction of String Theory that’s distinct from what the Standard Model predicts still stands as an enormous strike against it. (WIKIMEDIA COMMONS USER ROGILBERT)

This is the dream of String Theory: that we can take this theory, like some enormous unbroken box, and stick the right key in it and watch it crumble away, leaving only a tiny piece left that perfectly describes our Universe. In the absence of such a key, String Theory can only be considered a physical speculation.

It may be interesting and promising, but until we can solve String Theory in a meaningful way to get the Universe we observe out of it, we have to admit to ourselves what String Theory truly is: a large, unbroken box that must somehow crumble in this particular, intricate fashion, to recover the Universe we observe. Until we understand how this occurs, String Theory will only remain a speculative dream.
