How do volcanoes make lightning?

The science of volcanic lighting is almost as spectacular as the phenomenon itself.

When hot, molten rock pushes its way up through the Earth’s crust and exits through to the surface, it often results in a volcanic eruption. These eruptions sometimes occur via slow and steady flows, but often show themselves in huge bursts of activity. When this latter case happens, a large amount of ash, dust, rock, volatile gases, and lava all are expelled in a very short period of time. While we might think of these as the major features of a volcano, there’s often a magnificent visual sight that accompanies these: volcanic lightning. Although not every eruption will produce this stunning light show, it’s been observed and recorded by humans for countless generations. Now, with our advanced understanding of physics and the physical sciences, we finally understand how it’s produced.

In 2015, the Chilean volcano Calbuco erupted for the first time in 42 years. Although the sight of volcanic lightning may be beautiful, the eruption itself causes significant damage and widespread devastation. Image credit: Jose Mancilla/LatinContent/Getty Images.

Magma, the subterranean predecessor to lava, can form in a variety of ways. Pockets of magma exist deep within the Earth’s mantle, originating as deep as the Earth’s liquid outer core, but are also created from the crust sliding over the top of the mantle. Either way, when liquid rock, heated to thousands of degrees, makes its way upwards to the crust, it can erupt through to the surface at a few select weak points. When this happens, not only does lava emerge, but is often accompanied by large amounts of soot and ash. And occasionally, if the recipe is just right, lightning as well.

The combination of lava, heat, and ash clouds makes a reliably good recipe for volcanic lightning, although the physics of how it works requires going down to the molecular or even subatomic level. Image credit: Marco Restivo/Demotix/Corbis.

Volcanic lightning appears to occur most frequently around volcanoes with large ash plumes, particularly during active stages of the eruption, where flowing, molten lava creates the largest temperature gradients. The phenomena of lightning has been exquisitely recorded around a number of recent volcanic eruptions, including Iceland’s Eyjafjallajökull, Japan’s Sakurajima, Italy’s Mt. Etna, and Chile’s Puyehue, Calbuco and Chaiten volcanoes. But what you may not know is this phenomenon was not only captured during Mt. Vesuvius’ last eruption in 1944, but was accurately described nearly 2,000 years ago when it erupted all the way back in the year 79!

The 2008 eruption of Chaiten created a large amount of volcanic lightning, but this is not a new or rare occurrence. Volcanic lightning has been documented photographically for many decades, and recorded historically for millennia. Image credit: US Air Force (inset), Carlos Gutierrez (main).

Each lightning strike is the exchange of some 1020 electrons, or — in long-form notation — 100,000,000,000,000,000,000 charged particles. You may be used to atoms being neutral, with equal numbers of electrons as there are protons in their nuclei, but heat and friction make it surprisingly easy for atoms to gain or lose electrons, transforming them into ions. At the temperatures that volcanoes achieve, it’s energetically favorable for an atom to become ionized, where it either picks up or loses an electron (or two, or three). We certainly don’t need to go these extremes to find ions; something as simple as rubbing your wool socks against the carpet is an example of transferring electrons and creating ions.

When two different materials, such as fabric and plastic, are rubbed together, charge can be transferred from one to the other, creating a net charge on both objects. In this case, the child is charged up, and the effects of static electricity can be observed in his hair (and his shadow’s hair). The slide’s charge is unobservable. Image credit: Ken Bosma / flickr.

Now, if you can separate these ions from one another, you create a separation of charge, which creates a voltage. When the voltage between two regions becomes too great — even if air is the only thing between them — it spontaneously becomes conductive, creating a breakdown of the material between these distant regions. There’s an ensuing exchange of charge that happens extremely rapidly, and that’s what you see as a lightning strike! All told, there have been more than 150 different eruptions over the past couple of centuries where volcanic lightning has been recorded.

One of the many instances of photographic volcanic lightning was captured just a few years ago by Marco Fulle, via helicopter, during an eruption at night. Image credit: Marco Fulle / Astronomical Observatory of Trieste.

As complicated as this phenomena might appear to be, and as difficult as it is to predict which circumstances it will and won’t occur under, there are really only three steps you need to make it happen. Here’s the science of how volcanoes make lightning:

Ions of different types and charges can easily be created at high temperatures and when a variety of particles of different compositions all interact. A volcanic eruption is an ideal environment for this. Image credit: Ken Costello.

1.) Start with an abundance of positive and negative ions. The combination of heat (from typical volcanic temperatures of 1500 K) and the diverse composition of what’s unearthed by a volcano ensures a significant fraction of particles coming out are not neutral. Electrons can relatively easily be kicked off of some molecules and absorbed by others; for the individual ash particles that come out, many are positively charged ions and many are negatively charged ions. The hotter a volcano is and the more violent the eruption, the greater the likelihood of seeing volcanic lightning.

Notice, in the video above, that the volcanic lightning only appears when the hottest-temperature material — actual, flowing lava — becomes visible at the base of the ash plumes. In addition to the signs of the charges differing from one another, they also must have different molecular (or atomic) weights from one another, as well as different physical sizes (or cross-sections). This is extremely important, because it allows for the second essential step.

Radii of some elements as neutral atoms, and cations (red) and anions (blue) derived from those atoms. Radii are given in picometers. Image credit: Wikimedia Commons user Popnose.

2.) Separate the negative charges from the positive ones. Neutral atoms have different physical sizes from one another, and charged atoms (and molecules) have that difference exaggerated even moreso. There are also significant mass differences between different atoms-and-molecules, which is important because giving the same amount of energy to a lighter particle means it winds up moving faster. And finally, there’s also a temperature gradient, where the particles just coming out have higher temperatures than the ones that have been in the atmosphere for some time.

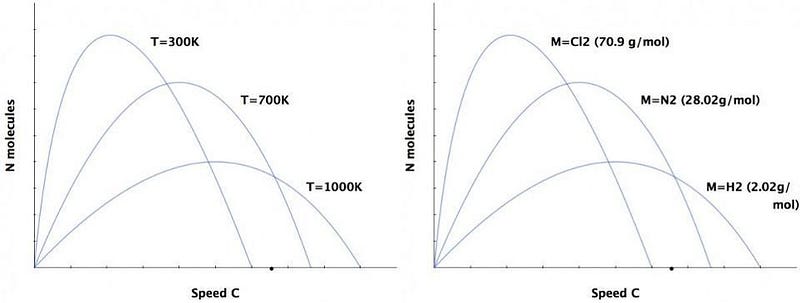

The number density versus speed distribution for particles of different temperatures (left) and different masses (right). Image credit: Phong Dao and Julie Quattrocchi / UC Davis ChemWiki.

This combination of different temperatures and different masses give these ions different speeds from one another. And when you have a turbulent environment, smaller and lighter particles are typically transported greater distances more easily, making it easy for charges to separate by large distances.

A step-by-step illustration of how the physics of volcanic lightning works. Only after all the prior steps are sequentially completed can a lightning strike occur. Image credit: Brentwood Higman / E. Siegel.

3.) A large enough amount of separated charges will flow on their own, creating lightning. Separated, large numbers of charges create a voltage difference. If you have a large enough difference over a space containing any material, even if it’s an insulating or extremely sparse material like air, you’ll get an electrical discharge, which is a lightning strike!

A single lightning strike often occurs between two disconnected points, as huge numbers of electrons are exchanged across a medium that can be as tenuous as free air. This strike at Japan’s Sakurajima is one of the brightest single strikes ever recorded. Image credit: Asahi Shimbun / Getty Images.

That’s it! That’s the general process behind how volcanic lightning works. Combine these things together: different mass (and charge) ions moving at different average speeds with different cross sections in an environment with a temperature gradient, and there’s your recipe for a charge separation. Get a large enough charge separation over the right distance, and that will give you a lightning strike. That’s the origin of volcanic lightning.

Puyehue volcano in Chile, erupting in this image a few years ago, is a breaktaking example of a volcanic lightning storm where an extraordinary number of strikes occurred in a relatively short period of time. Image credit: Francisco Negroni / AP.

There are always a number of details to be filled in as far as improving our understanding of exactly how this occurs in each individual volcanic eruption. Unsolved questions include:

  • why it sometimes occurs in the virtual absence of ash clouds,
  • why many strikes will occur in bursts, while others occur at relatively constant frequencies,
  • and why some volcanoes don’t appear to have it at all.

But this basic picture is irrefutable, and has given us some spectacular sights for all the world to share in. Volcanic lightning events can be a one-time thing, or the strikes can last for minutes, hours, or even multiple days.

When a time-lapse photo of an erupting volcano is taken, it’s often possible to catch many independent lightning strikes arising from a single volcanic ash cloud. Image credit: Carlos Gutierrez / Reuters.

Using the photographic techniques of either stacking or time-lapse, you can often see multiple strikes in a single composite photograph, with many containing dozens or even hundreds of individual lightning bolts. As the charges move around, every single strike is different, but the physics is universal. All it takes is heat, ionization, a diversity of molecules, and transport, and when enough charge separates over the right distance, electrical discharges occur. That’s how you make volcanic lightning, and the spectacular result is unlike anything else in the world.

Ethan Siegel is the author of Beyond the Galaxy and Treknology. You can pre-order his third book, currently in development: the Encyclopaedia Cosmologica.
