Highest resolution of any continent: A stunning new map of Antarctica

Not so long ago, we had better maps of Mars than of Antarctica. Now, Antarctica is the best-mapped continent in the world.

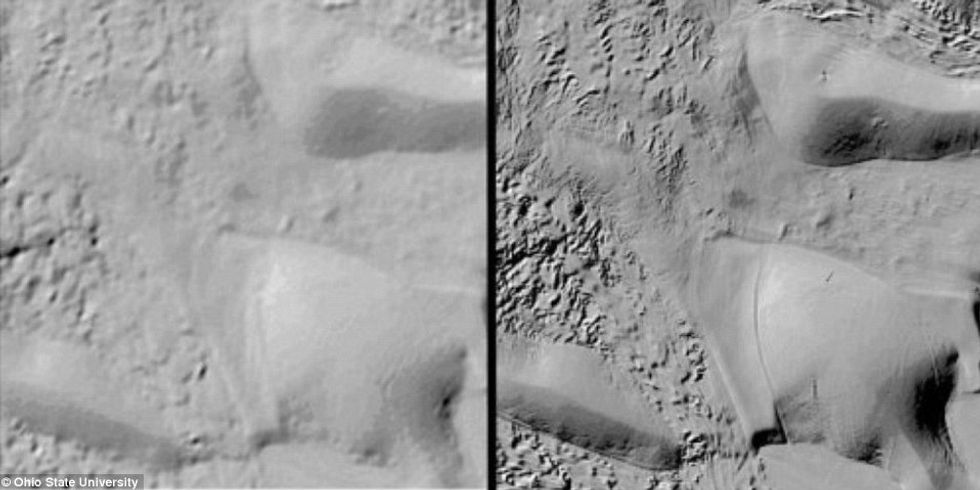

A before and after picture of Antarctica: The resolution has improved by a factor of 100 (Source: Ohio State University).

Not so long ago, we had better maps of Mars than of Antarctica. But in one fell swoop, the South Pole has moved from bottom to top of the class. The world’s southernmost continent now is the world’s best-mapped land mass. And for that, we may thank REMA, the Reference Elevation Model of Antarctica.


“Thanks to satellites, a s***ton of computer power, and a lotta work, we now have a more detailed map of Antarctica than we do of any other continent”, said glaciologist Mike MacFerrin, tweeting as @IceSheetMike; however, “you’ll need 150 TB to download the whole thing.”

REMA, developed by the Earth Sciences department at Iowa State University and the Polar Geospatial Center at the University of Minnesota and the University of Illinois, has produced a map of the frozen continent in a resolution 100 times higher than before. Whereas the standard resolution for comparable maps is 1,000 meters (app. 3,280 ft), this one has a resolution of either 2 or 8 meters (6.5 or 26 ft), depending on the where you look at the continent.

REMA’s Antarctic resolution; blue shading corresponds to a resolution of 2 meters, and purple corresponds to a resolution of 8 meters (Source: REMA/Polar Geospatial Center/Ohio State University).

That’s way more detail than the collective picture of any other continent. To put that in perspective, the 150 terabytes produced by REMA on Antarctica is

  • about as much data as the IRS Compliance Database held in 2006 (each year, 15 to 20 terabytes are added).
  • a bit more than the entire 95-minute, digitally animated 2010 film Despicable Me (actually, the film used just 142 TB of data).
  • quite a lot more than all the data gathered by the Hubble Telescope between its launch in 1990 and 2008 (120 TB).

REMA “provides the first high-resolution, high-accuracy terrain dataset of approximately 98% of the contiguous continental land mass of Antarctica, extending [from the South Pole] to 88°S,” the project website states.

The map, built with data extracted from satellite imagery, is not just static. Ongoing input will provide scientists with the most detailed overview of shifting landscape patterns in Antarctica ever—from changes in snow cover, ice flow, glacier thickness, and all manner of geological activity.

Overview of the highest resolution map of Antarctica ever produced (Source: Ohio State University).

But why do we need all that high-resolution imagery for what is essentially a big hunk of ice? Because Antarctica is a crucial bellwether for the study of global climate change and a potential source of dramatic sea level rises. Nature recently published a series of studies on changes in Antarctica. Here are some key findings:

  • 3 trillion tons of ice has been lost between 1992 and 2017. That corresponds to a mean sea-level rise of 8 mm (1/3 inch). The rate of ice loss has sped up dramatically over the last few years.
  • The East Antarctic Ice Sheet is proving more resistant to melting than both the Greenland and West Antarctic Ice Sheets. Should it melt entirely, sea levels would rise by 53 meters (175 feet).
  • By 2070, Antarctica’s ice sheets will either remain in roughly their current state or experience large-scale melting. The difference depends on whether or not humanity takes decisive action on greenhouse gas emissions.
Access REMA at the Polar Geospatial Center of the University of Minnesota. Comparison image and overview map via Ohio State University (Source: Paul Morin, Polar Geospatial Center).
